Product Name: Die Cast Aluminum Oil Pan Housing
Model No.: To be customized
Specification: To be customized
Material: ADC12, A380
Application: Automobile and Truck parts
Chamber structure: Cold chamber Horizontal
Main process: High pressure die casting
Machining : CNC Machining
Tolerance: +/- 0.02mm
CNC Machining Type:Four-axis Machining Center
Certification: ISO9001:2015,ITAF16949:2018,
Place of Origin: Ningbo, China
The Aluminum Die Casting Automobile Oil Pan is the lower half of the crankcase. Its function is to close the crankcase as the outer shell of the oil storage tank, to prevent impurities from entering, and to collect and store the lubricating oil flowing back from the friction surfaces of the diesel engine, to dissipate some of the heat, and prevent the oxidation of the lubricating oil in the meanwhile.
Mold material | H13, DVA, DIEVAR, 8407, 8418, W400, PH13 etc |
Mold life | 50000 shots , or as per request |
Product Material | Aluminum alloy ADC12, A360, A380 , AlSi12(Cu), AlSi9Cu3(Fe), AlSi10Mg and so on. |
Surface Treatment | Polishing, Shotblasting,Sandblasting, Painting, Powder coating |
Process | Drawing & Samples→Mould making→ Die casting → Deburring
→ Drilling and threading → CNC Machining → Polishing → Surface treatment → Assembly → Quality inspection → Packing →Shipping |
Die casting machine | 400T/500T/630T/800T/1250T/1600T/2000T |
Drawing format | step, dwg, igs, pdf |
Certificates | ISO/IATF16949 :2016 |
QC System | 100% inspection before package |
Monthly Capacity | 40000PCS |
Lead time | 25~45working days according to quantity |
Payment terms | T/T |
Application | Automotive parts, Led light housing & heat sink , Electronic products body, Telecom chasis, cover, Power tool parts , Aerospace structure parts, Aluminum cooling plate, Heat sinks . |
1. Die-casting Ability
Fenda is professional manufacturer with the ability to expand the die casting range, with die casting machines ranging from 400T to 2000 T. It can produce parts weighing 20g-40kg. The independent furnace of each die casting machine enables us to provide a variety of aluminum to meet the unique needs of customers.
2. Mold Design and Manufacturing in house
The in-house tooling shop allows us to do the die-casting mold design, mold Fabrication & mold maintenance in the same workshop. Our mold engineers will review your drawings and propose suggestions by mold flow analysis, which can help you prevent potential issues or risks that may happen in later production.
3. CNC Machining Ability
Fenda has an experienced and mature CNC machining team, more than 80 sets of high-speed/high-precision machining centers, and more than 20 sets of high-precision stir friction welding、surface treatment and other precision special machines . The minimum tolerance is controlled by 0.02mm to meet the needs of parts.
4.High quality
Process control and upfront engineering are the keys to guaranteeing high-quality castings. This is probably why Fenda exceeds the industry standards for internal scrap and failure rates. In summary, Fenda strives for Zero-Defects by continuously monitoring all processing and investing painstaking effort into tooling development and designs.
5.Most Competitive Price
We believe future development is based on any possible cooperation today, no matter how big the order is. Therefore, we control the profit at a very limited level.
Our target is to produce high quality goods with very limited profit margin for the mutual benefits of both of us.

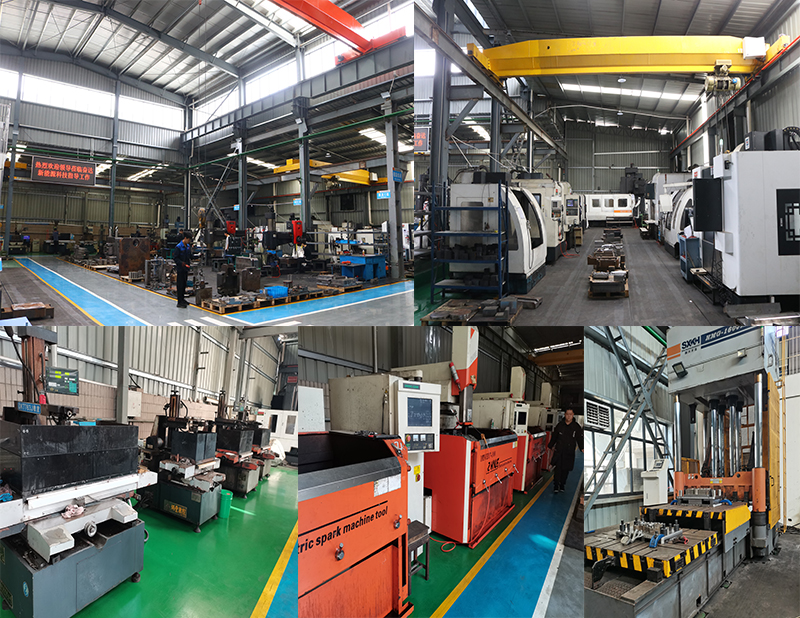

Ningbo Fenda New Energy Technology Co., Ltd ( IATF 16949 registered factory), was established in 2006 with 15,000 square meters manufacturing facility. Located in Ningbo, China , it is dedicated to designing and manufacturing medium and large aluminum die casting molds and die castings for the Automotive, LED Lighting housing, Power Tools, and numerous mechanical applications. Our capabilities include tool design and manufacturing; casting; machining; finishing and assembly.
1-Stop precision aluminum die casting solution provider
15+ years of experience, & 140 employees
ISO 9001 & IATF 16949 certified
7 Die casing machines from 400T to 2000T.
80+ high-speed/high-precision machining centers
30 sets of high-precision stir friction welding、surface treatment and other precision special machines
1 set of Zeiss CMM , 1 set of Eduard CMM, 1 set of industrial CT, 1 set of Oxford-Hitachi spectrometer and several sets of gas tightness testers.
With hard work, outstanding quality, and dependable service we have successfully and steadily grown over the years and have survived good and bad economic times along the way. Our main customers include ABB , GM, AUDI,MAZDA , BOSCH, BUICK and so on. For these customers we have designed and manufactured over hundreds sets of moulds these years. Most of our products have exported to USA, Germany, Italy, Netherlands and so on.
Contact us for your next project.
