Product Name: | Electric Vehicle Motor End Cover |
Material: | ADC12 |
Specification: | 436.5*308*200 |
Certification | ISO9001/IATF16949:2016 |
Application: | Automotive |
Crafts | Aluminum High Pressure die casting + CNC machining |
Surface | Deburring + Shot Blasting |
Inspection | CMM, Oxford-Hitachi spectrometer, Gas tightness tester, Calipers etc |
Mold material | H13, DVA or as per request |
Mold life | 50000shots , or as per request |
Product Material | Aluminum alloy ADC12, A360, A380 , AlSi12(Cu), AlSi9Cu3(Fe), AlSi10Mg and so on. |
Surface Treatment | Polishing, Shotblasting,Sandblasting, Painting, Powder coating |
Process | Drawing & Samples→Mould making→ Die casting → Deburring → Drilling and threading → CNC Machining → Polishing → Surface treatment → Assembly → Quality inspection → Packing →Shipping |
Die casting machine | 280T/400T/500T/630T/800T/1250T/1600T/2000T |
Drawing format | step, dwg, igs, pdf |
Certificates | ISO/TS16949 :2016 |
QC System | 100% inspection before package |
Monthly Capacity | 40000PCS |
Lead time | 25~45working days according to quantity |
Payment terms | T/T |
1.Die Casting Tooling

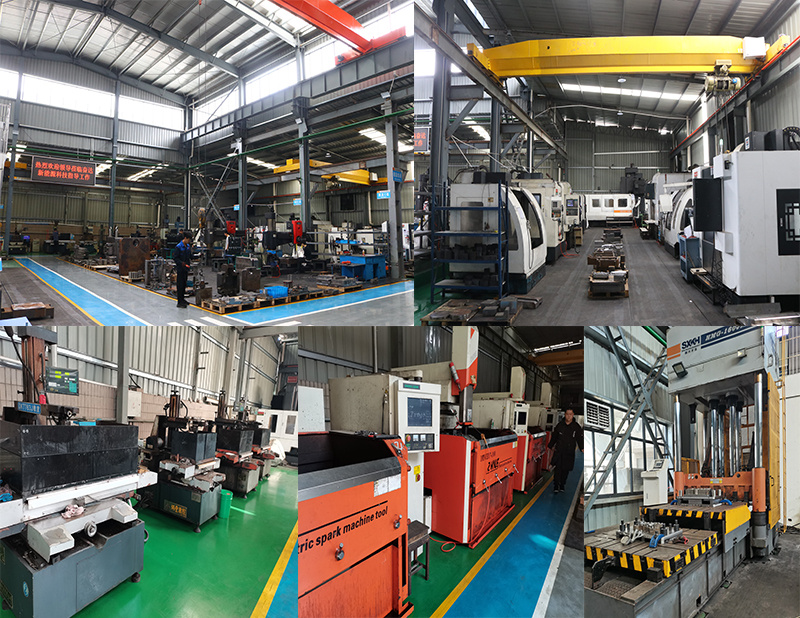

The in-house tooling shop allows us to do the die-casting mold design, mold Fabrication & mold maintenance in the same workshop.
Our mold engineers will review your drawings and propose suggestions by mold flow analysis, which can help you prevent potential issues or risks that may happen in later production.
2.Die-casting Ability
Fenda is professional manufacturer with the ability to expand the die casting range, with die casting machines of 400-2000 tons of different tonnage. It can produce parts weighing 5g-20kg. The independent furnace of each die casting machine enables us to provide a variety of aluminum to meet the unique needs of customers.
3. CNC Machining Ability
Fenda has an experienced and mature CNC machining team, more than ten imported processing centers and lathes, and its own processing brand PTJ Shop is one of the top ten small and medium-sized processing manufacturers in China. It provides reliable precision for processing. The minimum tolerance is controlled by 0.02mm to meet the needs of parts.
4. Quality Inspection System
Fenda pays special attention to the quality control of the mass production process and has established a complete quality inspection process and system. All products are fully inspected or constructed in accordance with the standards. Testing equipment includes: spectrometer, stretching Testing machine, CMM three-coordinate, pass-stop gauge, parallel gauge, various calipers, etc., to achieve the control ability of the quality system.
5. Surface Treatment Ability
Fenda can complete the physical surface treatment and powder spraying treatment such as shot blasting, fine sand, powder coating and so on. At the same time, Fenda has been deeply involved in the local supply chain for more than 17 years, strategically integrating dozens of chemical surface treatment suppliers, and through the management of complex supply chains, to provide customers with surface treatment such as plastic spraying, painting, anodizing, electrophoresis, chrome plating, etc.
